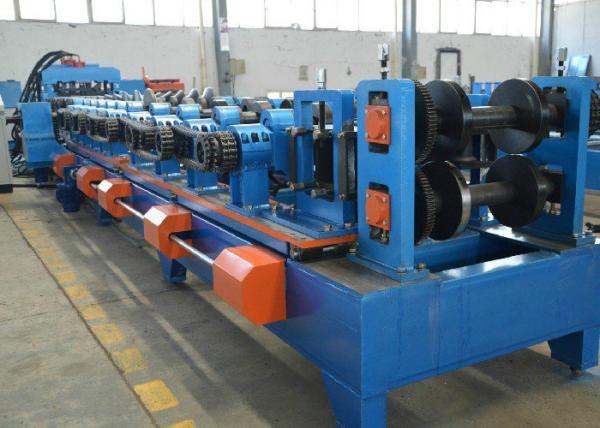

Interchangeable CZ Purlin Roll Forming Machine for Steel Construction HF

The Interchangeable CZ purlin roll forming machine is used to produce both C and Z purline on one machine. Adjust from one shape to the other, one operator only needs 10 minutes, and the size adjustment can be fully automatic1. C & Z purlin interchange: fully automatic, within 1 minute. 2. Purlin size change: fully automatic, within 1 minute.3. More optional systems: pre-shearer, servo main motor, flange punching, etc.4. Machine surface adopts powder coating, coating before assembly.

Punching and Cutting:
1. punching mold: Cr12 HRC 58-62
2. machine with 2 sets punching system according to punching drawing
3. Punching with hydraulic drive
4. punching at end-wise controlled by PLC control system, punching at broad-wise adjusted by manual
5. Punch details drawing, end-user has to provide.
6. Hydraulic Cutting before forming: Cut the sheet before roll forming to the required length
7. Cutting motion: The main machine automatically stops, then punching and cutting.
8. The material of blade: CR12with heat treatment
9. Length measuring: Automatic length measuring
10. Tolerance of length: 3m+/- 1.5mm

Control panel Panasonic
1. Voltage, Frequency, Phase: 415V, 50 Hz, 3Phase or customized
2. Automatic length measurement:
3. Automatic quantity measurement
4. The computer used to control length & quantity. The machine will automatically cut to length and stop when the required quantity is achieved
5. Length inaccuracy can be amended easily.
6. Control panel: Button-type switch and touch screen
7. Unit of length: millimeter (switched on the control panel)
8. The program should be can set 5 different measures and quantity.

Reference Profiles Drawings
De-coiler--Coil strip feeding--Roll forming--Hydraulic Punching--Cut to length--Run out table



Advantages of Interchangeable CZ purlin roll forming machine
1. High quality
2. Reasonable price
3. Good after service
4. High strength
5. High durable
6. Simple structure

Packaging Details
Main machine is nude in the container, the computer control box is packed with wooden packaging.

Wuxi Hengruiyang Technology Co., Ltd is a manufacturer of roll forming machine. At present, our products have been exported all over the world, and maintained good cooperative relations with customers.
